Electro-hydraulic two post lifts.
Possibility of installation in symmetrical or asymmetric version.
Self-alignment with automatic positioning.
Standard height of two-post connection: 4,050 mm
Available versions(with optional column extension set):
V: Specific for vans (Height of two-post connection: 4,620 mm)
XV: Specific for vans and very high vehicles, extra-above version (Heightof two-post connection: 5,220 mm).
All models supplied with:
- Realignment of the two carriages using metal cables that garanteeexcellent synchronisation.
- Anticrushing safety bar as standard.

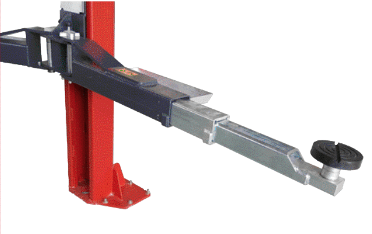

- Two set of extension pads.
|TECHNICAL DATA||ERCO HC4502|
|Lift capacity||4500 kg|
|Lifting time||45 s|
|Three phase motor||400/230V - 3kW 3Ph - 50/60Hz|
|Single phase motor||230V - 3kW 1Ph - 50/60Hz|
|Max. lifting height||2080 mm|
|Lift minimum height||100 mm|
|Height connection||4050 / 4620 / 5220 mm|
